Integrated LEDs

ERCO Eclipse S 48 V 12.4 W wallwash 930 white
Brand
- Brand:
- ERCO
- SKU:
- 3079134
Colour & design
- Color:
- white (RAL 9002)
- Material:
- cast aluminium, plastic
Dimensions
- Width (cm):
- 7.4
- Height (cm):
- 20.6
- Other measurements:
- spotlight - diameter 6 cm, height 16.5 cm
- Net weight (kg):
- 0.45
Light source
- Light bulb:
- LED - 12.4 W in total
- Light bulb (included):
- Included, Not required
- Wattage (watts):
- 12.4
- Luminous colour:
- warm white (3,000 K)
- Light output (in lumen):
- 1208
- Lumens (lm):
- 1208
- Colour rendering (Ra):
- 92
Additional functions
- Dimmable:
- Yes
- Integrated dimmer:
- Included
- Smart Home System:
- Casambi, Bluetooth
- Smart home connection:
- Bluetooth
- App:
- iOS App and Android App
Technical specifications
- IP code:
- IP20
- Protection class:
- I
- Supply voltage (volts):
- 48

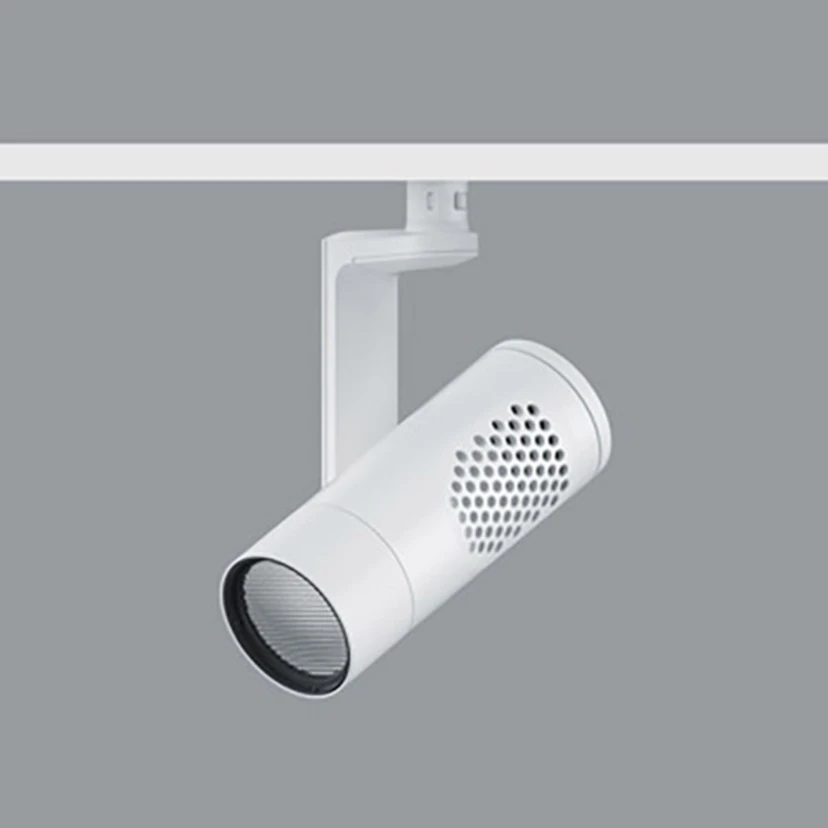

Adjustable LED spotlight Eclipse S for control via Casambi app for 48V Minirail tracks - 12.4 W LED, light distribution Wallwash
For ERCO's 48 V Minirail track system, this version of the Eclipse S LED spotlight provides an equipment variant for large-area illumination of business, conference, recreation, passage, exhibition and sales areas. The light of the integrated high-power LEDs is spread over a very wide area thanks to the collimator optics made of optical polymer and a darklight lens. Made of aluminium, the cylindrical-shaped luminaire head is attached to the track adapter with an extension arm; the attachment points allow it to swivel 270° and rotate 360°. The Casambi Bluetooth module allows operation via app on the smartphone/tablet.
- With rail adapter for ERCO Minirail power rail 48V and Minirail point outlet 48V.
- Very good colour rendering: Ra 92
- Connected load: 13.9 W
- with ERCO control gear and Casambi Bluetooth Control Unit
- Connection with smartphone/tablet via Bluetooth
- Switchable, dimmable and can be integrated into scenes via Casambi app (available free of charge for iOS and Android)
- Controllable with other Casambi-enabled products
