TRIDONIC LED driver LC 100W 24V IP67 L EXC UNV
Brand
- Brand:
- TRIDONIC
- Item no.:
- 9053044
Colour & design
- Color:
- grey
- Material:
- Aluminium

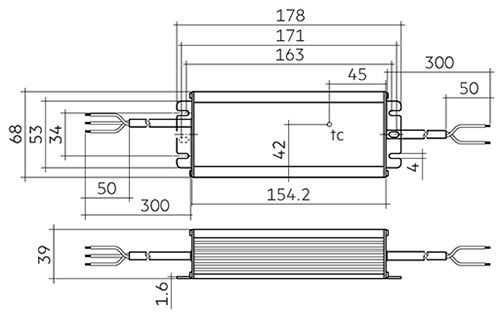

Dimensions
- Length (in cm):
- 17.8
- Width (cm):
- 6.8
- Height (cm):
- 3.9
- Other measurements:
- Hole spacing - 16.3 cm; length of connection cable 30 cm each
- Net weight (kg):
- 0.825
Light source
- Light bulb included:
- No
- Integrated LEDs:
- No
Electrical information
- IP code:
- IP67
LED driver LC 24V output constant IP67 L EXC UNV from TRIDONIC - different input voltages possible, protected against water
This luminaire driver for 24V LEDs is also suitable for use in damp environments, for example for outdoor lighting. A special feature is the possible connection to a wide range of mains voltages. The aluminium housing in encapsulated design offers increased protection against corrosion; in addition, sheathed input and output lines are available.
- For installation in dry, damp and wet environments
- Input voltage possible from 100 V to 277 V
- Ambient temperature during operation: - 40 °C to + 60 °C
- Protection class: IP67
- Protection against overtemperature, overload, short circuit, open circuit
- EN 55015, EN 61000-3-2, EN 61000-3-3, EN 61347-1, EN 61347-2-13, EN 62384, EN 60598-1, UL8750
